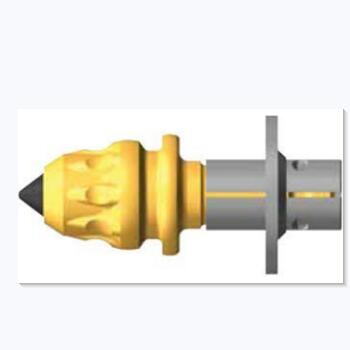

銑刨機刀頭工作原理:銑削轉子是銑刨機的主要工作部件，它由銑削轉子軸、刀座和刀頭等組成，直接與路面接觸，通過其高速旋轉的銑刀進行工作而達到銑削的目的。銑刨機上設有自動調平裝置，以銑削轉子側蓋作為銑削基準面，控制兩個定位液壓缸，使所給定的銑削深度保持恒定；其液壓系統用來驅動銑削轉子旋轉、整機行走、輔助裝置工作等，一般為多泵相互獨立的閉式液壓系統，工作時互不干擾且可靠性較高；有的銑刨機根據需要安裝傾斜調整器，用來控制轉子的傾斜度；一般大型銑刨機都有由傳送帶和集料器組成的集料輸送裝置，它可將銑削出的散料集中并傳送至隨機行走的運載汽車上，輸送臂的高度可以調節并可左右擺動，以調整卸料位置。銑刨機規格、型號不同時，其結構、布置也略有區別，但基本工作原理相同或相似。銑刨機動力傳動的路線：發動機→液壓泵→液壓馬達、液壓缸→工作裝置。

免責聲明丨 部分內容來源網絡！本文僅供交流學習 , 版權歸屬原作者，部分圖片、內容推送時未能及時與原作者取得聯系，若來源標注錯誤或侵犯到您的權益煩請告知，我們將立即刪除.

銑刨機刀頭工作原理:銑削轉子是銑刨機的主要工作部件，它由銑削轉子軸、刀座和刀頭等組成，直接與路面接觸，通過其高速旋轉的銑刀進行工作而達到銑削的目的。銑刨機上設有自動調平裝置，以銑削轉子側蓋作為銑削基準面，控制兩個定位液壓缸，使所給定的銑削深度保持恒定；其液壓系統用來驅動銑削轉子旋轉、整機行走、輔助裝置工作等，一般為多泵相互獨立的閉式液壓系統，工作時互不干擾且可靠性較高；有的銑刨機根據需要安裝傾斜調整器，用來控制轉子的傾斜度；一般大型銑刨機都有由傳送帶和集料器組成的集料輸送裝置，它可將銑削出的散料集中并傳送至隨機行走的運載汽車上，輸送臂的高度可以調節并可左右擺動，以調整卸料位置。銑刨機規格、型號不同時，其結構、布置也略有區別，但基本工作原理相同或相似。銑刨機動力傳動的路線：發動機→液壓泵→液壓馬達、液壓缸→工作裝置。

免責聲明丨 部分內容來源網絡！本文僅供交流學習 , 版權歸屬原作者，部分圖片、內容推送時未能及時與原作者取得聯系，若來源標注錯誤或侵犯到您的權益煩請告知，我們將立即刪除.

QQ郵箱：2870202745@qq.com

網易郵箱：LS13645201509@163.com

Working principle of milling machine tool head: The milling rotor is the main working component of the milling machine, which is composed of the milling rotor shaft, tool seat, and tool head. It directly contacts the road surface and works through its high-speed rotating milling cutter to achieve the purpose of milling. The milling machine is equipped with an automatic leveling device, which takes the milling rotor side cover as the milling reference plane and controls two positioning hydraulic cylinders to maintain a constant milling depth; The hydraulic system is used to drive the rotation of milling rotors, the walking of the entire machine, and the operation of auxiliary devices. It is generally a closed hydraulic system with multiple independent pumps, which does not interfere with each other and has high reliability during operation; Some milling machines are equipped with tilt adjusters as needed to control the inclination of the rotor; Generally, large milling machines have an aggregate conveying device composed of a conveyor belt and a feeder, which can concentrate the milled loose materials and transport them to a randomly moving transport vehicle. The height of the conveying arm can be adjusted and can swing left and right to adjust the unloading position. The specifications and models of milling machines vary slightly, but their basic working principles are the same or similar. The power transmission route of the milling machine: engine → hydraulic pump → hydraulic motor, hydraulic cylinder → working device.

Disclaimer | Part of the content comes from the internet! This article is for communication and learning purposes only. The copyright belongs to the original author. Some images and content were not promptly communicated to the original author during push notifications. If the source labeling is incorrect or infringes on your rights, please inform us and we will immediately delete it

Enterprise Introduction

The company supplies paver accessories, roller accessories, milling machine accessories, paver scraper drive shaft, scraper drive shaft assembly, leveling instrument, leveling instrument bracket, hydraulic pump and accessories. Our factory also provides vulnerable parts for pavers, balance beams for pavers, auger shafts, pedals, conveying soleplates, blades, ironing plates, reducers, chain tracks, track shoes, supporting wheels, scraper chains, conveying chains, etc.
